Rural Steel Water Tanks
Colourbond Liner Tanks

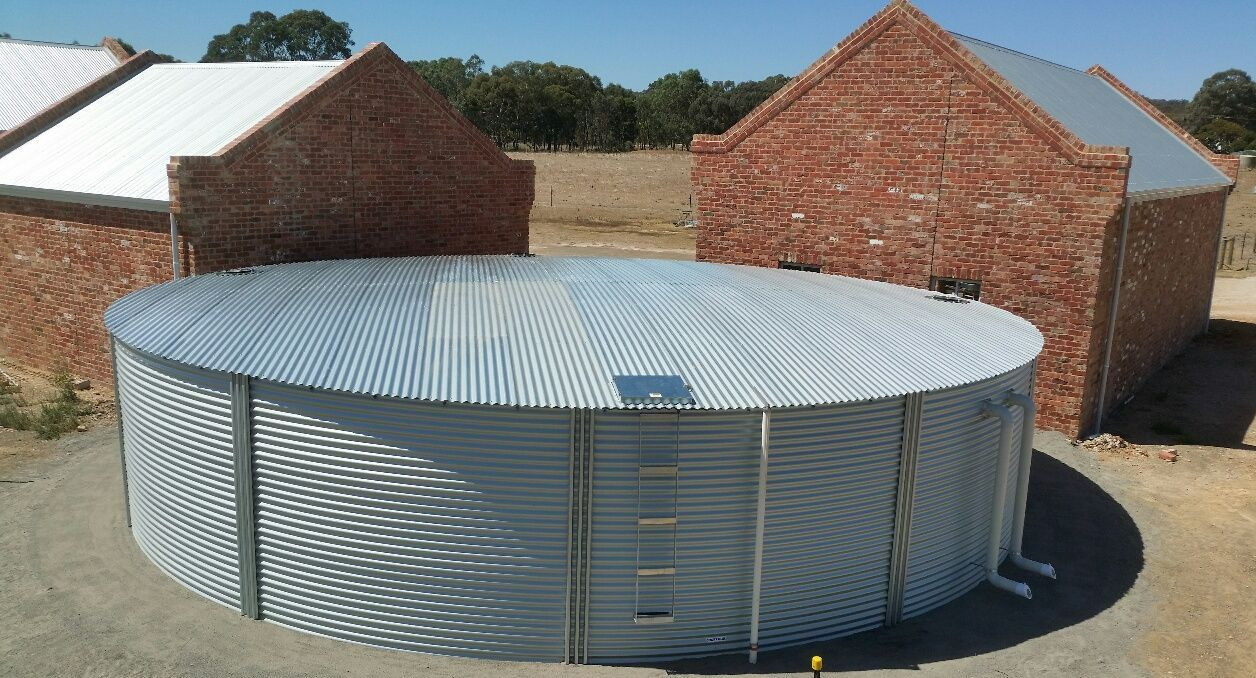

At Town Tanks, we are proud to be able to offer the full range of steel liner tanks. We not only supply them, but we build them too. Our full project management can also include preparing your foundation to the required specifications and connecting up your plumbing. We are also very happy to assist you with working out the best size tank for your setup and will take the time to calculate your water catchment according to your available roof space. We will also customise your tank with a range of accessories so that you are fully covered for all your household and irrigation requirements.
These tanks are manufactured and installed with quality at the forefront. Backed with a 20-year warranty on the steel body, plus a 20-year warranty on the tank liner, together with 10 years on workmanship, you have total peace of mind when investing in this type of water storage solution.
| LITRES | GALLONS | TANK DIAMETRE (m) | TANK HEIGHT (m) | TANK PAD SIZE (m) |
|---|---|---|---|---|
| 26,000 | 5700 | 3.9 | 2.2 | Min 5.5 |
| 40,700 | 8955 | 4.85 | 2.2 | Min 6.5 |
| 58,650 | 12,900 | 5.8 | 2.2 | Min 7.5 |
| 79,830 | 17,560 | 6.8 | 2.2 | Min 8.5 |
| 104,270 | 22,930 | 7.8 | 2.2 | Min 9.5 |
| 131,960 | 29,020 | 8.75 | 2.2 | Min 10.5 |
| 162,920 | 35,830 | 9.7 | 2.2 | Min 11.5 |
| 197,130 | 43,360 | 10.7 | 2.2 | Min 12.5 |
| 234,600 | 51,600 | 11.65 | 2.2 | Min 13.5 |
| 275,330 | 60,560 | 12.6 | 2.2 | Min 14.5 |
| 309,250 | 68,020 | 11.65 | 2.2 | Min 13.5 |
| 362,940 | 79,830 | 12.6 | 2.2 | Min 14.5 |
Tank Colours
Bluescope Colourbond Steel Colours Available:
- Surfmist
- Classic Cream
- Paperbark
- Jasper
- Pale Eucalypt
- Cottage Green
- Shale Grey
- Windspray
- Basalt
- Woodland Grey
- Monument
- Night Sky
- Dune
- Gully
- Evening Haze
- Deep Ocean
- Ironstone
- Wallaby
Standard Inclusions
- Bluescope Corrugated Walls & Roof
- 1 x 50mm Outlet & Ball Valve (Poly/Steel)
- 1 x Lockable Access Hath
- Hot Dipped Galvanised Roof Trusses
- 1 x Inlet strainer & Light Guard
- Removable external ladder
- Heavy Duty Food Grade Liner
- 1 x 100mm bell mouth overflow with extension & frog flap
- Sacrificial Anodes
OPTIONAL EXTRAS
- Heavy Duty Tank Level Gauge
- Additional 50mm outlet & valve
- 50mm outlet with 50-64 camlock coupling
- Upgrade to 150mm Overflow
- Upgrade to 80 / 100mm outlet & valve
- 65mm outlet, valve & Stortz Coupling
- Upgrade to Hi-Flow Leaf Basket
- 50 / 80 / 100mm inlet options
- 150mm Fire Set-up & Stortz Tree
